Sku:
MPX-8503-AFAG-2EBUK

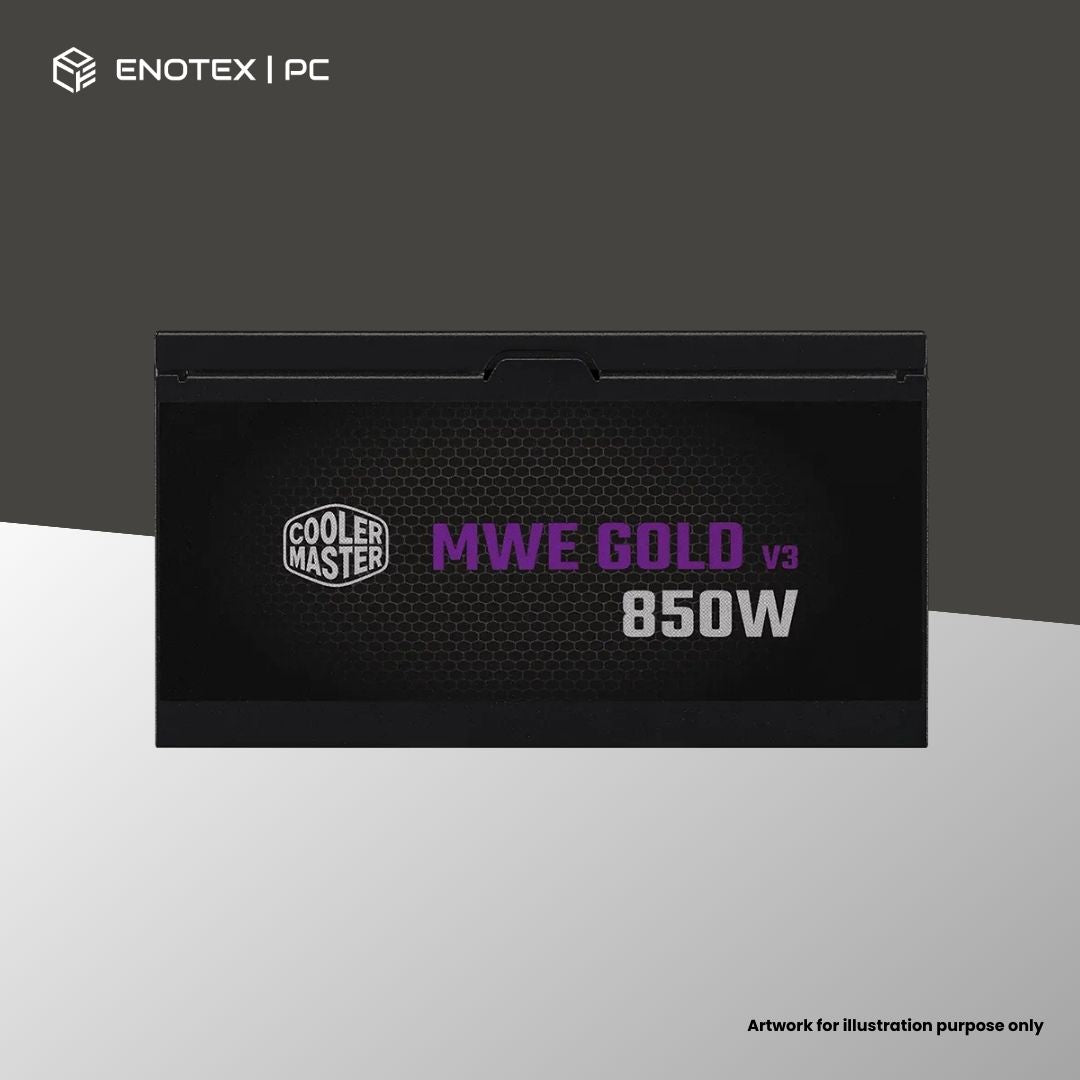

COOLER MASTER MWE V3 80+ GOLD 850WATT ATX3.1/PCIE5.1 FULL MODULAR (10YR)
- Sale price
- RM 459.00
- Regular price
-
RM 549.00 - Regular price
- RM 459.00
- Unit price
- per
-16%
Shipping calculated at checkout.
Specification
Specification
| Cable length | Varies by type, up to ~600mm (main cables) |
| PCMCIA Slots | 0 |
Interfaces/Ports
| Power Connectors | 1 x ATX 24-pin, 1 x EPS 8-pin, 1 x EPS 4+4-pin, 4 x PCIe 6+2-pin, 1 x 12V-2x6, 6 x SATA, 2 x Molex |
| SATA Connectors | 6 |
| CPU Connectors | 1 x EPS 8-pin + 1 x EPS 4+4-pin (2 total) |
| PCI Connectors | 4 x PCIe 6+2-pin, 1 x 12V-2x6 (PCIe 5.1) |
| Motherboard Connectors | 1 x ATX 24-pin |
| Molex Connectors | 2 |
| Berg Connectors | 0 |
| Floppy Connectors | 0 |
| Fan Connectors | N/A (internal 120mm HDB cooling fan only) |
| Auxiliary Connectors | None |
| RJ-45 Connectors | 0 |
| Other Connectors | None |
Compatibility
| Compatibility | ATX 12V Ver. 3.1, PCIe 5.1 GPUs, backward compatible with standard ATX motherboards and cases |
Compliance
| ATX Spec | ATX 3.1 |
| Standards | 80 PLUS Gold, ErP 2014 Lot 3, RoHS2.0, Safety: cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS, KC (varies by region) |
| Safety | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0, BIS, KC (varies by region) |
Electrical
| Voltage | 100 - 240V |
| Power | 850 W |
| Frequency Range | 50 - 60Hz |
| Power over Ethernet (PoE) | No |
| Power Over LAN Output | No |
| Power Cord | 1 x AC Power Cable (region-specific) |
Physical
| Form Factor | ATX |
| Form Factor | ATX |
| Case Colour | Black |
| Pack Quantity | 1 |
| In The Box | PSU Unit, Modular Cables, 1 x AC Power Cable, User Manual, Warranty Info |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| LED Status Indicators | None |
Environmental
| Operating Temperature | 0 - 40øC |
| Operating Humidity | 20%-85% (non-condensing, typical for PSU - Cooler Master does not specify exact but this is standard range) |
| Storage Temperature | -40-70øC (typical PSU rating, Cooler Master not explicit, use standard safe storage range) |
Identifiers
| EC Commodity Code | 85044055 (Power supplies for automatic data-processing machines) |
Warranty
| Warranty | 10 Years |
Key Features
| Main Colour | Black |
| Modular Cables | Modular |
| 80Plus Rated | 80 Plus Gold |
| PSU Form Factor | ATX |
| PCIe Connectors | 4 |
| Motherboard (EPS) Power Connectors | 4+4-Pin + 8-Pin |
| PCIe Pin Type | 6+2-Pin |
| PSU Depth | 160 mm |
| Cybenetics Efficiency ETA Cert. | Gold |
| CPU Power Pins (male) | 16 |
| PCIe Power Pins (male) | 24 |
| 12VHPWR 16-pin Connector | Yes |
| Side Modular Cable Location |
