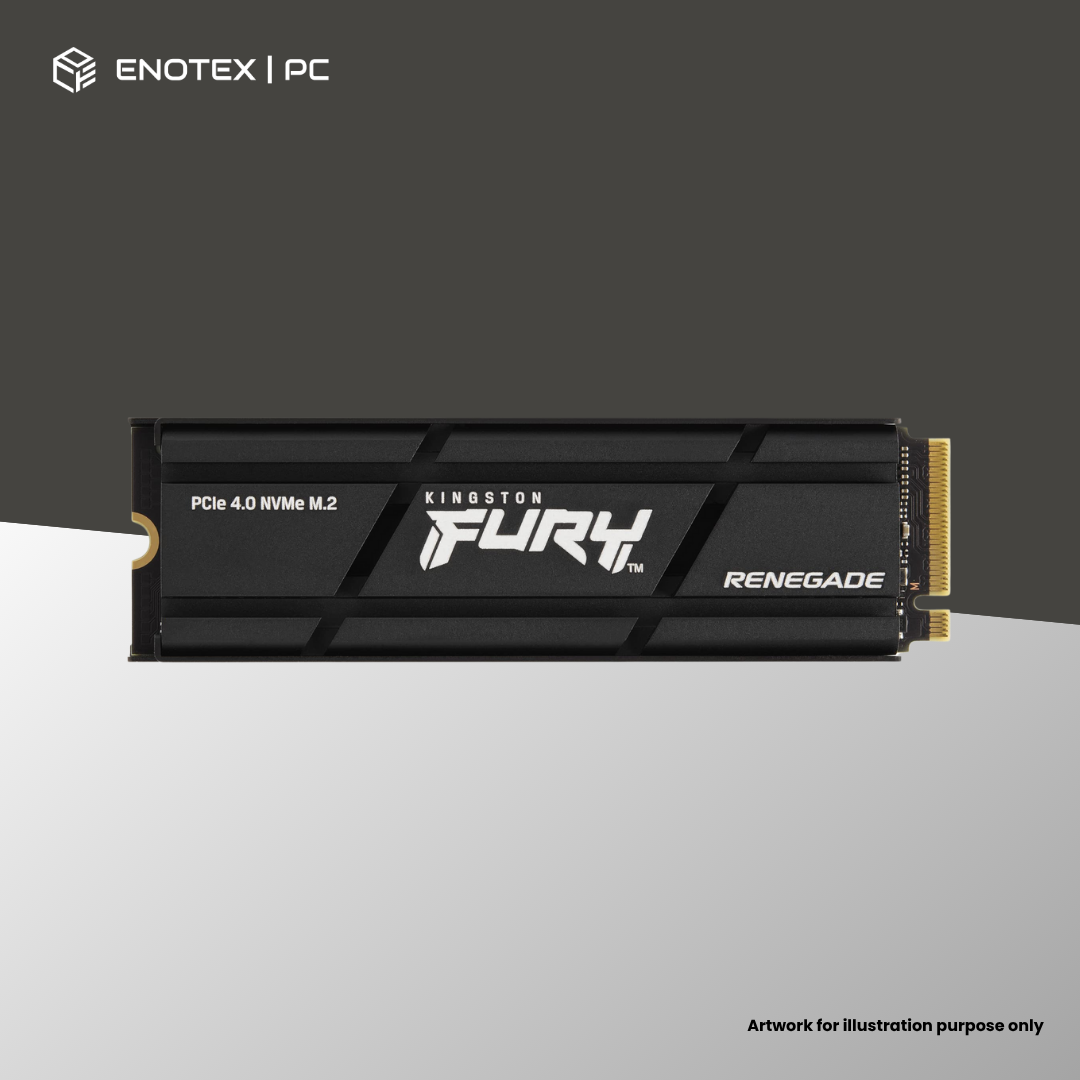

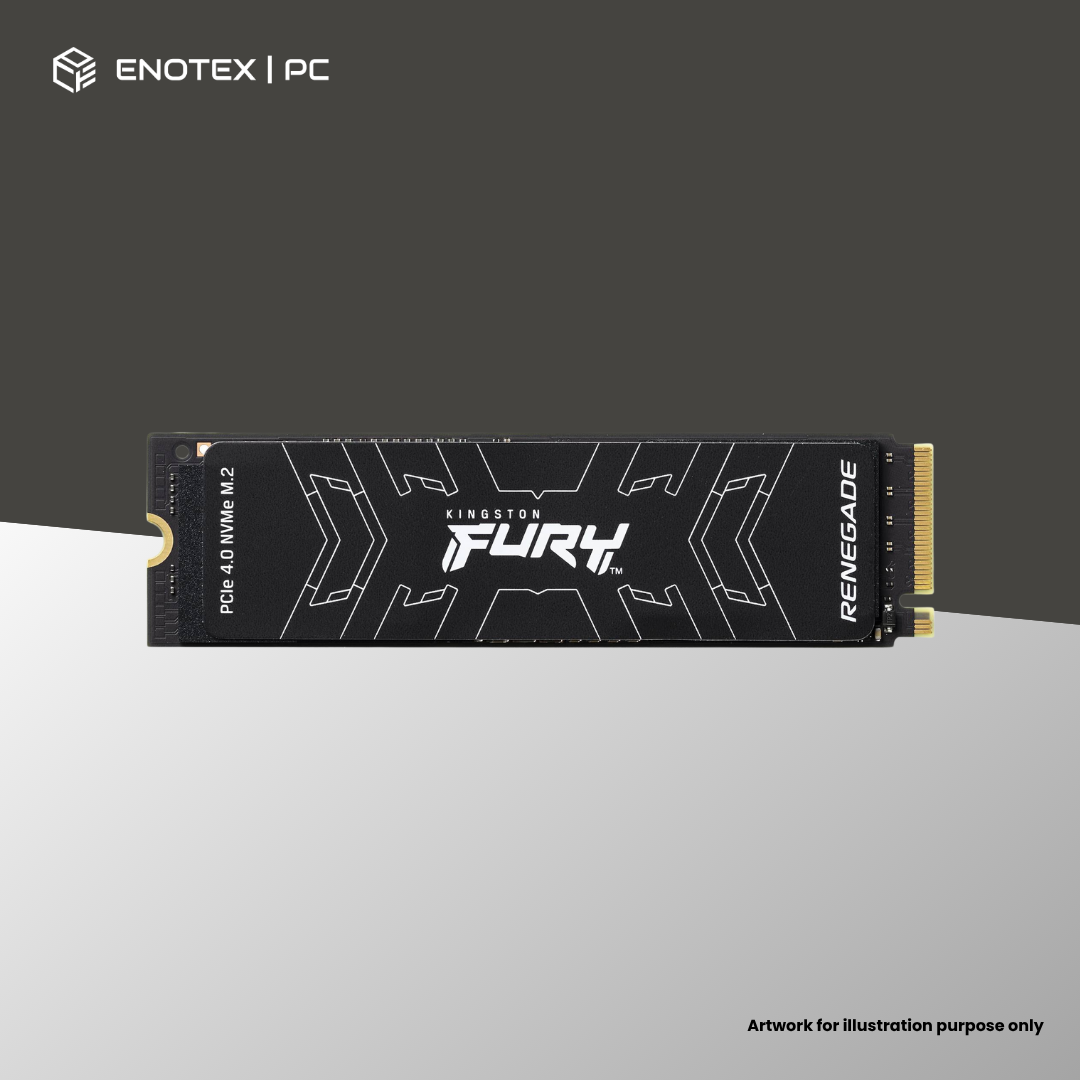

KINGSTON FURY RENEGADE

Form Factor M.2 2280
Interface PCIe 4.0 x4 NVMe
Capacities 500GB, 1TB, 2TB, 4TB
Controller Phison E18
NAND 3D TLC
DRAM Cache Yes
Sequential Read/Write
500GB – 7,300/3,900MB/s
1TB – 7,300/6,000MB/s
2TB – 7,300/7,000MB/s
4TB – 7,300/7,000MB/s
Random 4K Read/Write
500GB – up to 450,000/900,000 IOPS
1TB – up to 900,000/1,000,000 IOPS
2TB – up to 1,000,000/1,000,000 IOPS
4TB – up to 1,000,000/1,000,000 IOPS
Total Bytes Written (TBW)
500GB – 500TBW
1TB – 1.0PBW
2TB – 2.0PBW
4TB – 4.0PBW
Power Consumption
500GB – 50mW idle / 0.34W avg / 2.7W (MAX) read / 4.1W (MAX) write
1TB – 50mW idle / 0.33W avg / 2.8W (MAX) read / 6.3W (MAX) write
2TB – 50mW idle / 0.36W avg / 2.8W (MAX) read / 9.9W (MAX) write
4TB – 50mW idle / 0.36W avg / 2.7W (MAX) read / 10.2W (MAX) write
Storage Temperature -40°C85°C
Operating Temperature 0°C70°C
Dimensions
Heat spreader: 80mm x 22mm x 2.21mm (500GB-1TB), 80mm x 22mm x 3.5mm (2TB-4TB)
Heatsink: 80mm x 23.67mm x 10.5mm
Weight
Heat spreader: 500GB-1TB – 7g, 2TB-4TB – 9.7g
Heatsink: 1TB – 32.1g, 2TB-4TB – 34.9g
Vibration (Operating) 2.17G peak (7-800Hz)
Vibration (Non-operating) 20G peak (20-1000Hz)
MTBF 2,000,000 hours
Warranty/Support Limited 5-year warranty with free technical support
