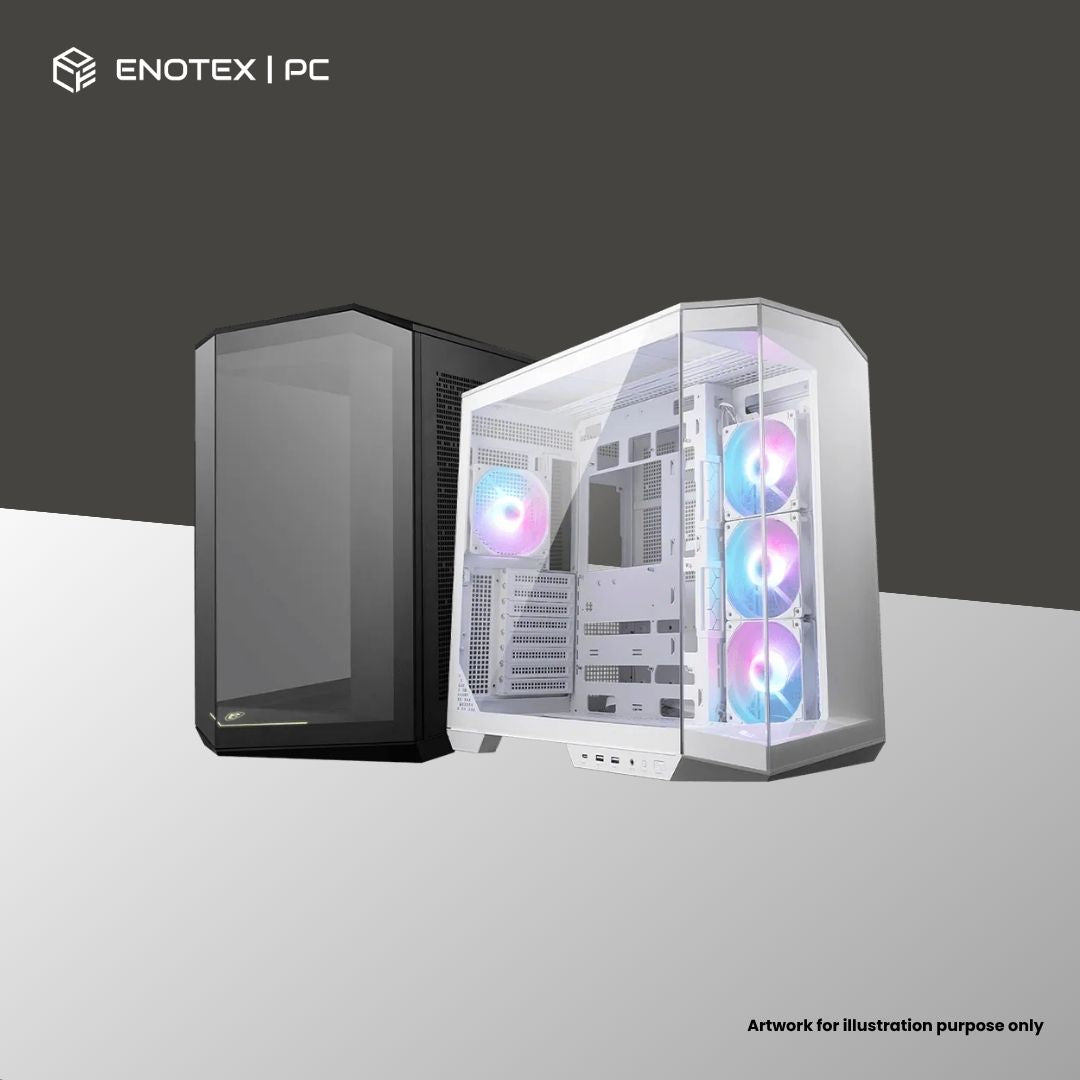

MSI MAG PANO 100R PZ ATX WITH FOUR FAN (2YR) - BLACK
- Sale price
- RM 739.00
- Regular price
-
RM 739.00 - Regular price
- RM 739.00
- Unit price
- per
-0%
Shipping calculated at checkout.
Specification
Specification
Product Name
MAG PANO 100R PZ
Case Form Factor
Mid Tower
Motherboard Form Factor Support
Regular: ATX / Micro-ATX / Mini-ITX
Back-connect: ATX / Micro-ATX
Back-connect: ATX / Micro-ATX
I/O Ports
1 x USB 20Gbps Type-C
2 x USB 5Gbps Type-A
1 x Audio-Out / Mic-in
1 x LED Switch Button
1 x Power Button
2 x USB 5Gbps Type-A
1 x Audio-Out / Mic-in
1 x LED Switch Button
1 x Power Button
Drive Mount Support
3 x 2.5”
2 x 2.5”/3.5” combo
2 x 2.5”/3.5” combo
Expansion Slots
8
Maximum GPU Length
400 mm / 15.75 inches
Maximum CPU Cooler Height
166 mm / 6.54 inches
Power Supply Support
ATX
Maximum PSU Length
200 mm / 7.87 inches
Fan Size Support
Top: 3 x 120 mm / 3 x 140 mm
Front: NA
Rear: 1 x 120 mm
Side: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm
Front: NA
Rear: 1 x 120 mm
Side: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm
Pre-installed Fan Size
Side: 3 x 120 mm
Rear: 1 x 120 mm
Rear: 1 x 120 mm
Pre-installed Fan Type
Side: 3 x ARGB Reverse-blade
Rear: 1 x ARGB
Rear: 1 x ARGB
Radiator Size Support
Top: 120 / 240 / 360 mm
Front: NA
Rear: 120 mm
Side: 120 / 240 / 360 mm
Bottom: 120 / 240 / 360 mm
Front: NA
Rear: 120 mm
Side: 120 / 240 / 360 mm
Bottom: 120 / 240 / 360 mm
Dimensions (DxWxH)
518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches
